Runnery Systems

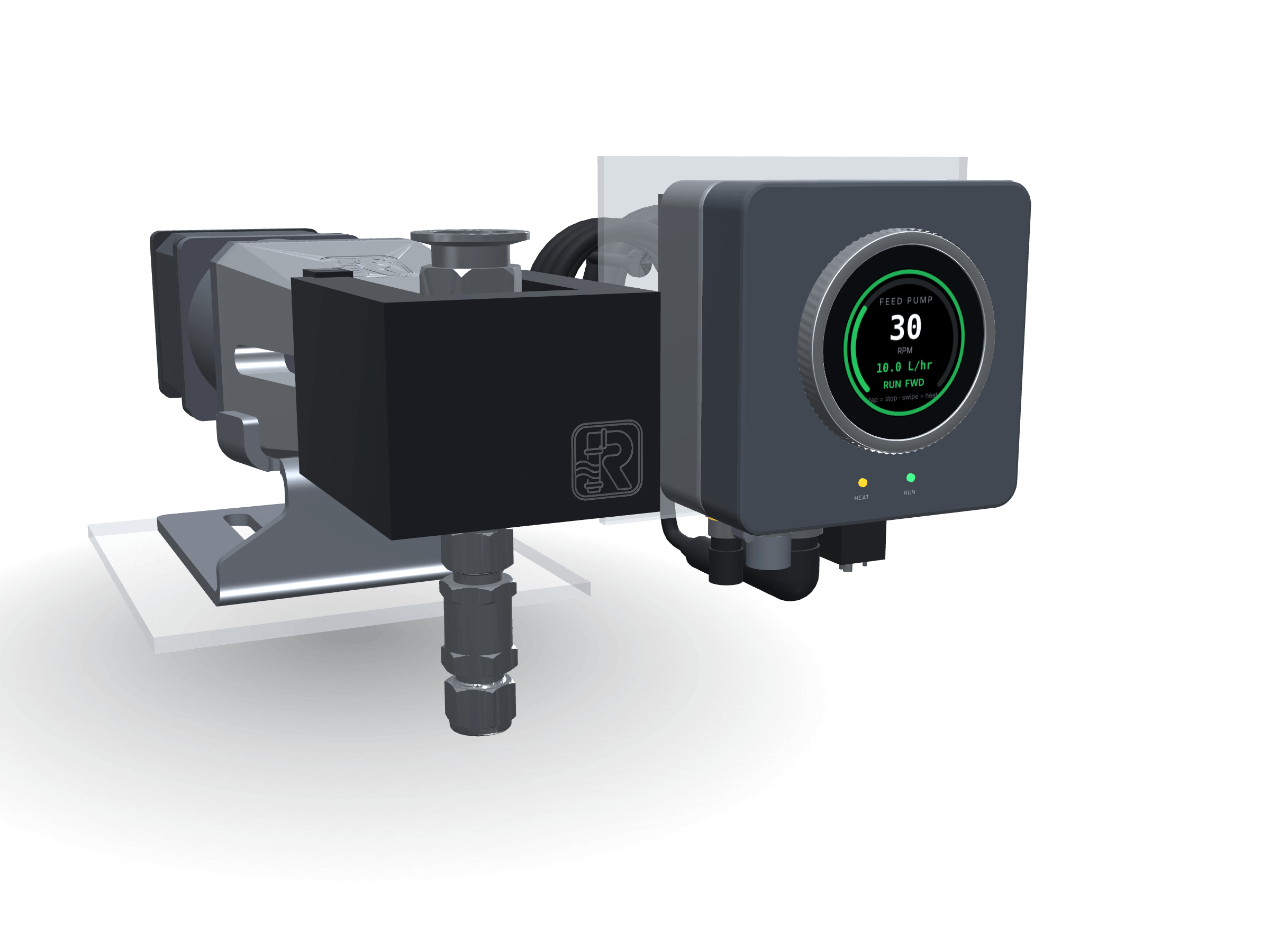

GP-6 Gear Pump Kit

Heated 6 cc/rev gear pump station: pump, drive, heater and one dial controller. Build it the way your line needs it.

1InletView

KF-25 adapterIncludedG 1/2 port adapted to a KF-25 flangeKF-25 sight glass+ $450Borosilicate sight glass between machined flanges on the KF-25 inlet: see the feed1-1/2 in tri-clamp inlet+ $200Swaps the KF-25 adapter for a 1-1/2 in tri-clamp ferrule

2OutletView

Check valveIncluded316 check valve straight down on the 1/2 in tube stubOutlet 90 with check valve+ $100Elbow forward with the check valve tucked under the pump head

3BaseView

Cradle footIncluded304 cradle with slots for 4 x M6: bolt it to a shelf or frame plateIndustrial jack+ $700Adjustable scissor jack under the cradle foot: align to any inlet and outlet height. The controller mount is chosen separately

4Controller mountView

Jack arm—Controller rides on the jack and moves up and down with the pump. Needs the industrial jackNo mountIncludedVESA 75 on the back of the controller: bolt it to your own panel or frame2 in square-tube clamp+ $200Tool-free clamp: hangs the controller on any 2 in square frame tube

5Whip lengthView

Motor, heater and power leads, all three the same length

6 ftIncludedMotor, heater and power leads10 ft whips+ $75Motor, heater and power leads, all three 10 ft15 ft whips+ $150Motor, heater and power leads, all three 15 ft

Spares

Replacement heater150 W, 120 V silicone heater pad with PT100 (3-wire), for the pump cover

$100

−

0

+

Replacement sight glassBorosilicate tube for the sight glass

$100

−

0

+

Questions about a build? sales@runnerysystems.com
